Encoders & Decoders
Matrox Monarch Series
Monarch HD Encoder Appliance
Matrox Monarch HD is a small, easy-to-use video streaming and recording appliance designed for professional video producers to stream a live event while simultaneously recording a higher, master quality version for post-event editing or archiving. Webcasting to YouTube and Facebook Live is easy for these popular platforms. All that’s needed is to set up the device once with these accounts and it’s automatically retained for subsequent streams.
From any HDMI input source such as a camera or switcher, Matrox Monarch HD generates an H.264-encoded stream compliant with RTSP or RTMP protocols. While encoding the video at bitrates suitable for live streaming, Matrox Monarch HD simultaneously records a high-quality MP4 or MOV file to an SD card, a USB drive, or a network-mapped drive. Matrox Monarch HD is remotely controlled using any computer or mobile device with a web browser.
Discover Matrox Monarch HD
Easily webcast to your audience

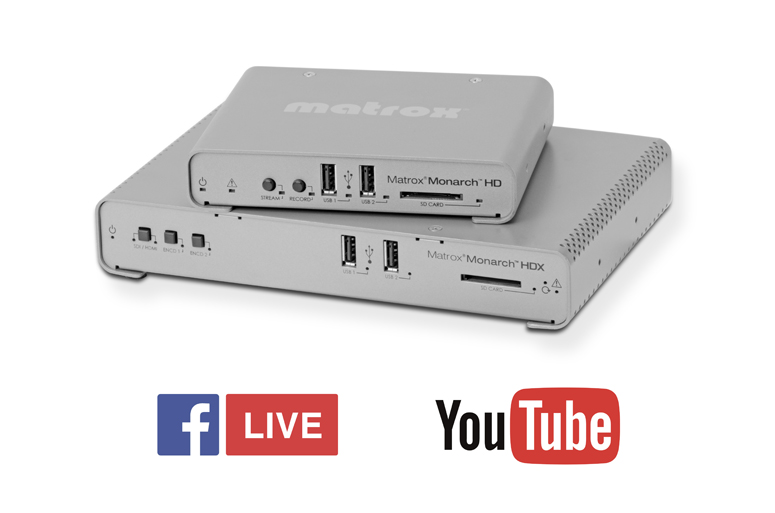

Monarch HD can provide live content to CDNs such as YouTube, Facebook Live, and Ustream; media servers such as Adobe Flash and Wowza; or directly to a computer or device found on a LAN. The device is easily configured for YouTube and Facebook accounts with a few short steps. As a certified “Works with Wowza” encoder it allows users to benefit from enhanced integration with the Wowza™ streaming engine. Additionally, Monarch HD supports XML files generated for use with Flash Live Media Encoder.
View compatible products
Record master quality video while streaming
Ready to edit and upload with MP4 and MOV
Matrox Monarch HD gives the option of recording high-quality H.264 video as MP4 or MOV files. These formats offer maximum versatility for use in any application. Upload a file to your own web server or to a Content Delivery Network (CDN) like YouTube. Alternatively, you can directly import the file into most creation tools without the need for file transcoding.
Robust and practical design

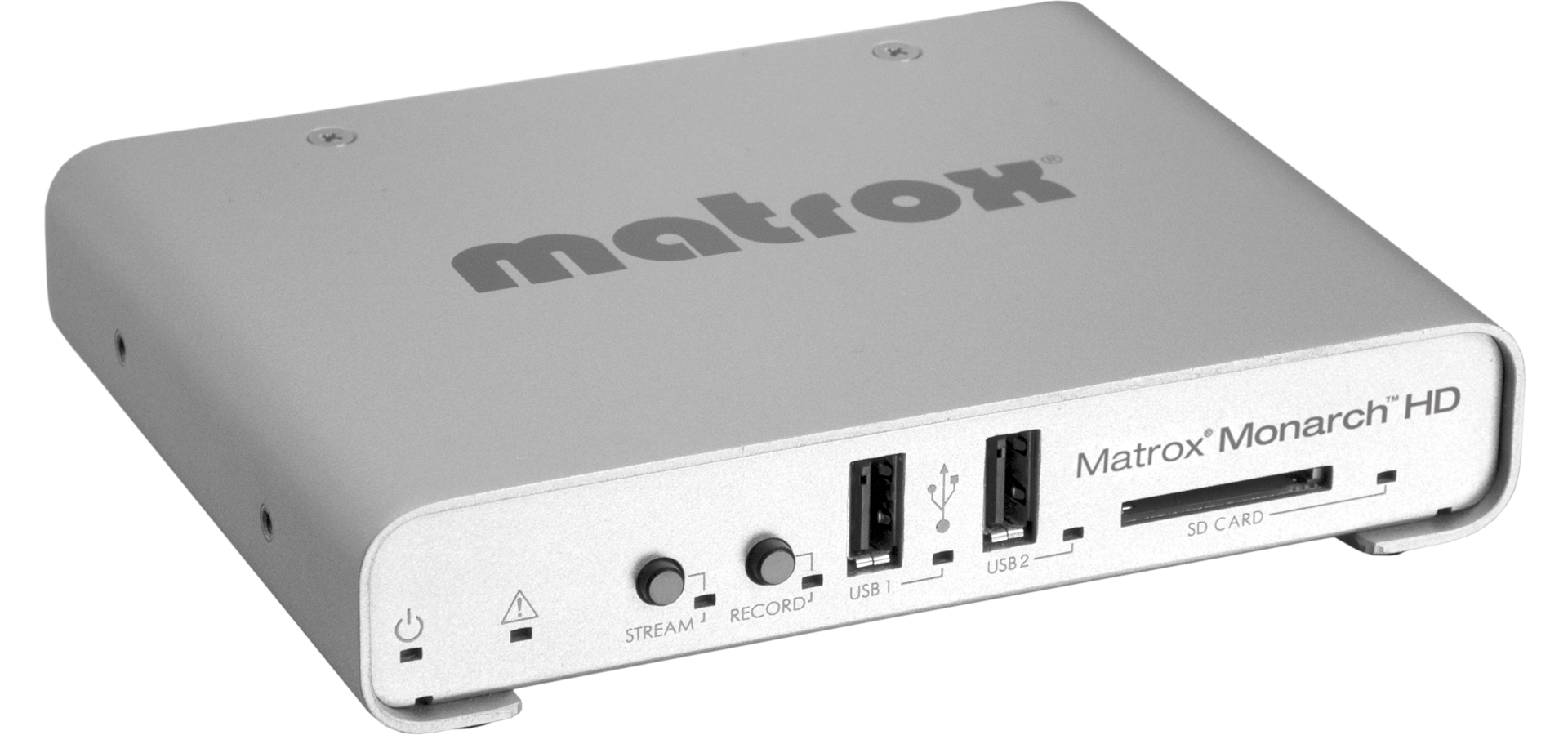

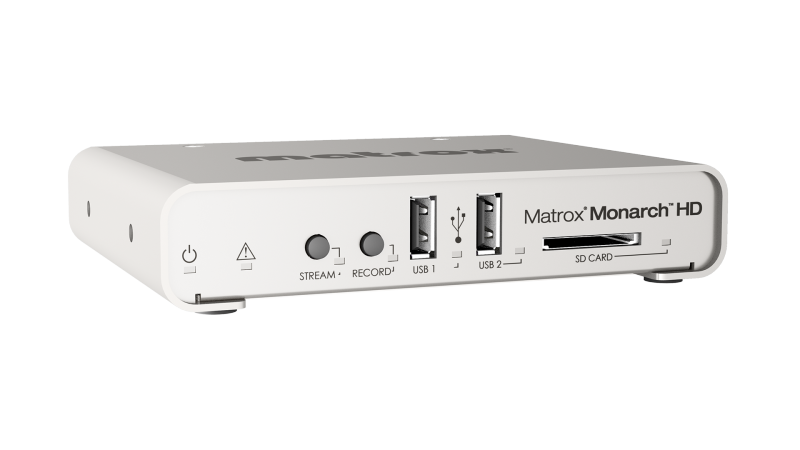

Powerful and robust, Matrox Monarch HD offers simple, one touch stream and record pushbuttons, low power consumption, a locking power connector, and a fanless design. Matrox Monarch HD's HDMI output makes it easy to monitor what you are streaming and recording, regardless of whether the signal is received from a camera, a switcher, a signal convertor, or a computer. All eight channels of embedded audio can be passed from the HDMI input to HDMI output ports. Two channels of analog audio input with loopout are also available via 1/8" stereo jacks. Its design allows Matrox Monarch HD to be just as easily located on a desktop as in a rack–up to three units can fit in a single 1RU tray. The storage and button controls are conveniently located on the front of the unit while the power and I/O ports are found at the back.
Record to anything
Presets and profiles for simple configuration
The Monarch HD firmware ships with a number of typical streaming and recording presets that define all the encoding parameters including resolution and bitrate. Whether preset or custom parameters are used, they only need to be entered once and saved as a unique profile. A profile not only contains encoding parameters but also destination information detailing where the encoded video is being sent. Multiple profiles can be saved if the device is used in different environments. Recording and streaming profiles are saved independently allowing a user to mix and match profiles depending how the Monarch is being used at the time. Each profile can be loaded instantly without having to re-enter data.
Remote command and control
Integrate Matrox Monarch HD into your own application or environment
Integrate with Crestron
Install in a rack
Matrox offers an optional Monarch HD Rack Mount Kit, an ideal space and cable management accessory which allows a user to fit up to three Monarch HD units in a single 1RU space. Please see the Matrox Monarch HD Tech Specs for ordering information.
