Matrox Mura IPX Series
Mura IPX 4K Capture & IP Decode Series

Matrox® Mura IPX 4K capture and IP decode cards provide four HDMI or two DisplayPort™ 1.2 inputs for high-resolution capture of multiple physical and IP sources, plus high-density decoding of up to four 4K or 16 HD streams—offering an unmatched audiovisual experience.
These PCI Express® cards can easily satisfy system builder requirements through the mixing and matching of a wide selection of Matrox video wall components, delivering a scalable solution to accommodate any video environment. Ideal for control rooms, digital signage, AV presentations and other applications requiring high-density capture, streaming, recording, decoding and control.

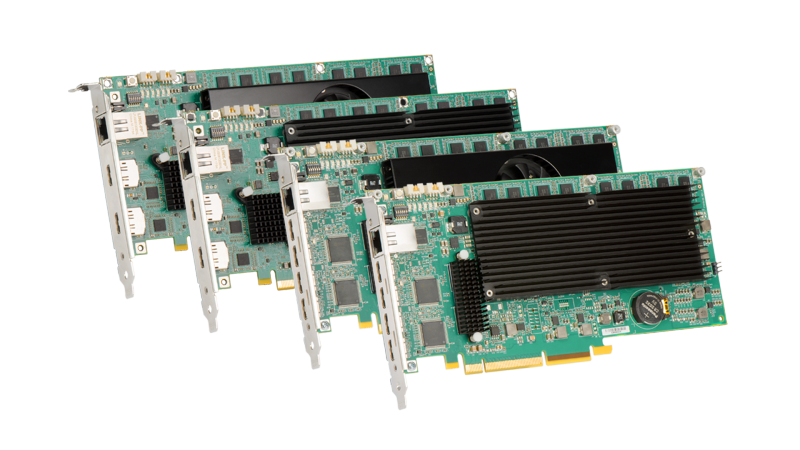

Lineup

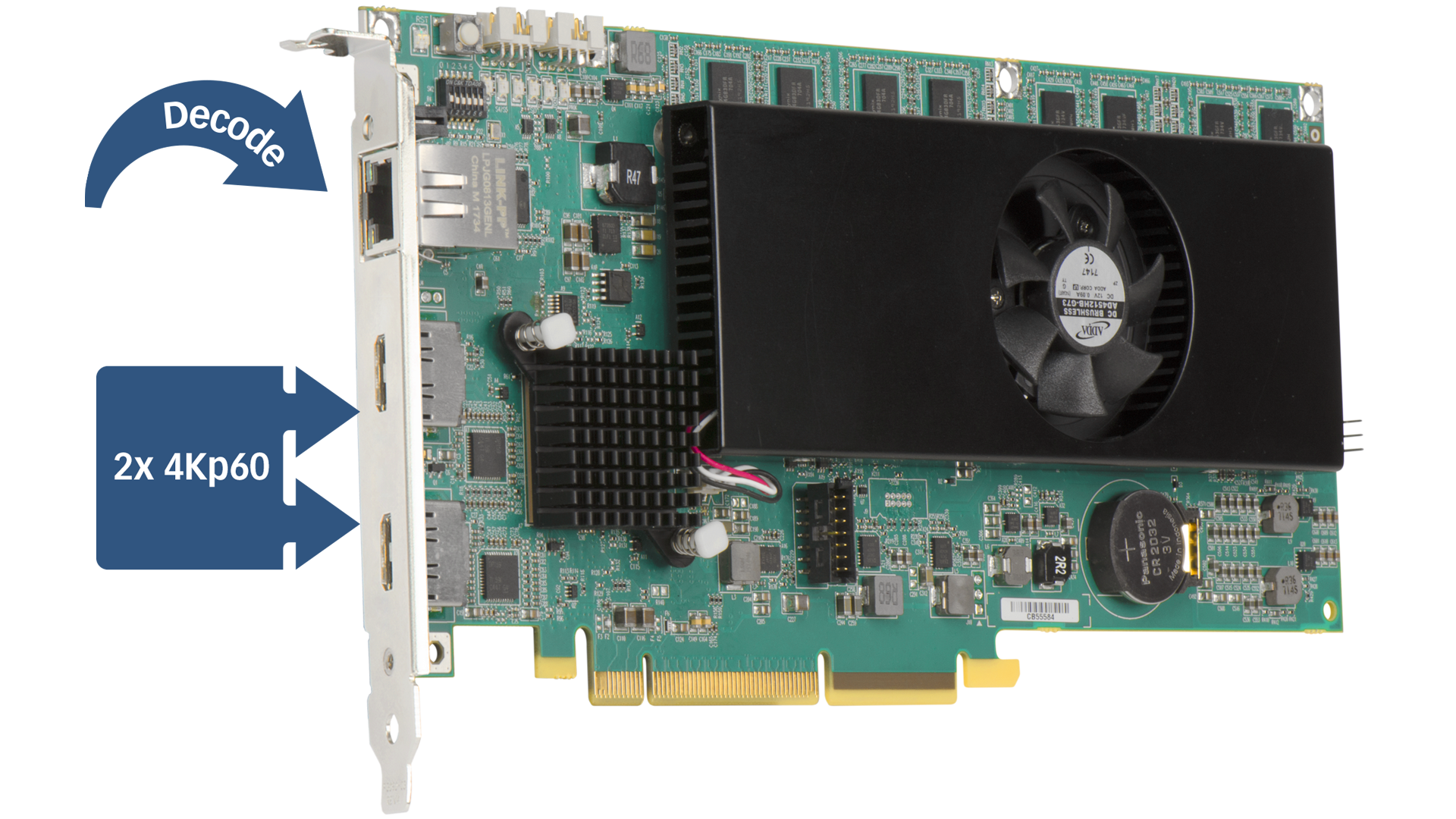

4K DisplayPort Capture & IP Decode
Part number: MURAIPXI-D2MF
Two Captures and IP Decode
(2x 4Kp60)

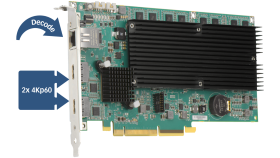

4K DisplayPort Capture & IP Decode (Fanless)
Part number: MURAIPXI-D2MHF
Two Captures and IP Decode
(2x 4Kp60)

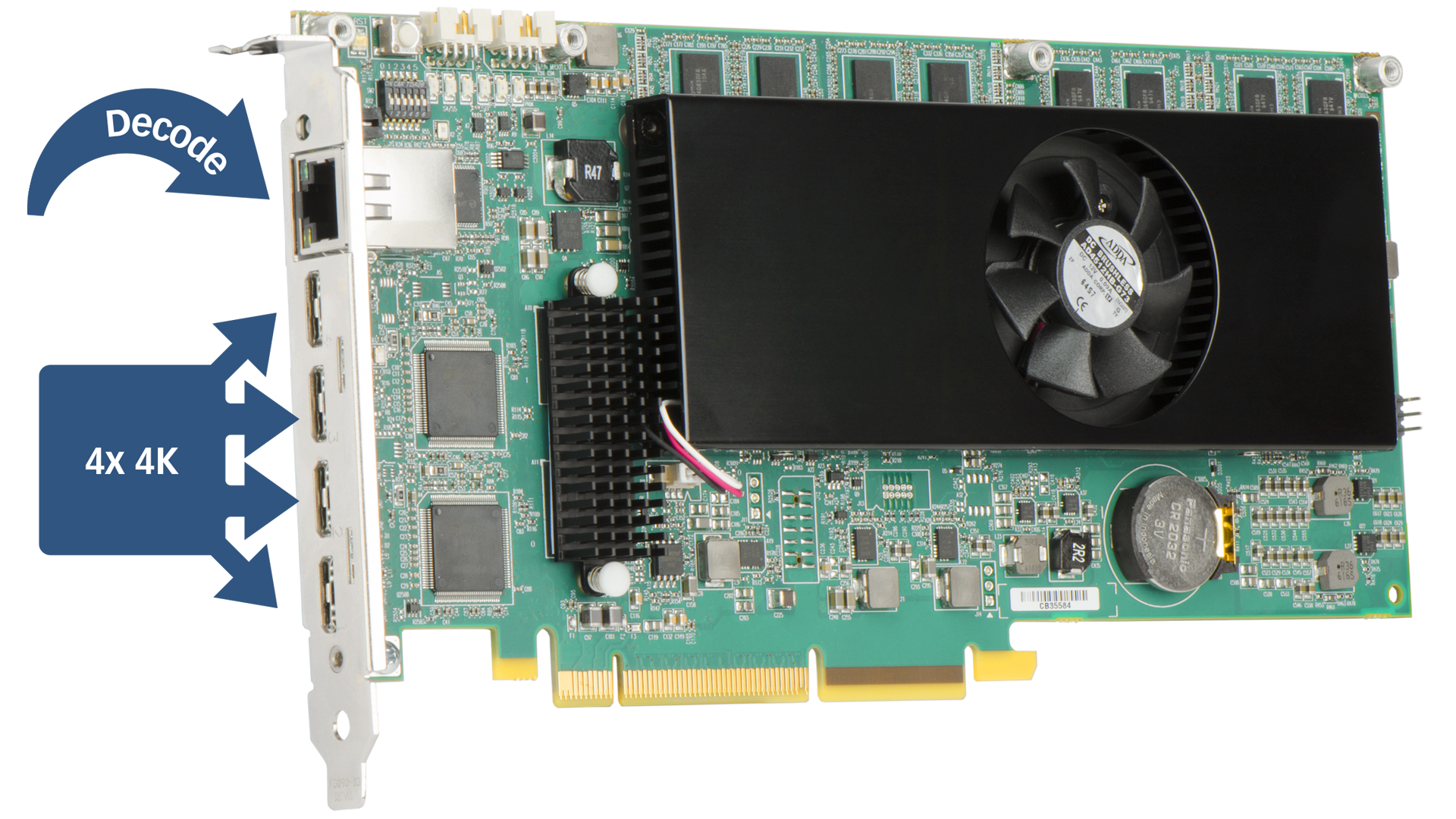

4K HDMI Capture & IP Decode
Part number: MURAIPXI-D4JF
Four Captures and IP Decode

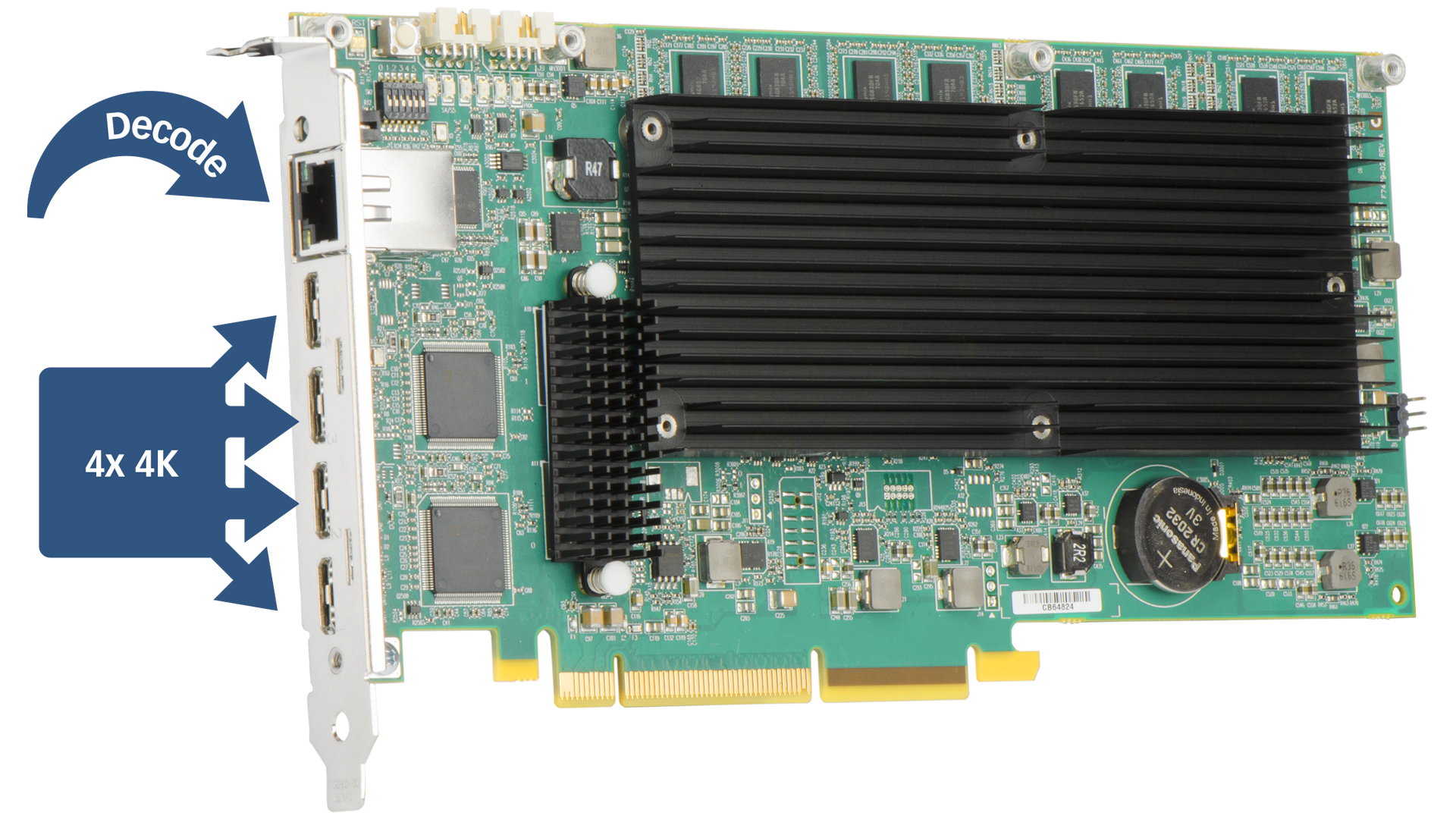

4K HDMI Capture & IP Decode (Fanless)
Part number: MURAIPXI-D4JHF
Four Captures and IP Decode
High-density H.264 decoding

Matrox Mura IPX 4K Capture & IP Decode cards have been engineered to offer world-class, high-density H.264 codec processes.
Resolution HDMI or DisplayPort 1.2 capture and IP decoding of 4K, Full HD, or SD streams
Quality decoding through the support of desktop-grade, high-frequency content without requiring color space compression.
Number of streams for applications requiring decoding of a high number of streaming IP sources.
HDCP compliant
Mura IPX cards capture up to 4 x 4K HDCP sources from a single-slot card. Mura IPX can also pair with Matrox D-Series graphics cards to capture and display HDCP-protected content on ultra-large video walls.

Proven video wall ecosystem

Combine Matrox Mura IPX’s exceptional multi-channel 4K capture and decode capabilities along with Matrox Video’s various multi-display options.
-
Pair Mura IPX with LUMA Pro graphic cards to output up to 8x 8k60 or 16x 5k60
-
Pair Mura IPX with D-Series graphics cards to output up to 16 x 4K displays
-
Pair Mura IPX with D-Series graphics cards and QuadHead2Go™ multi-monitor controllers to drive up to 64 Full HD screens.

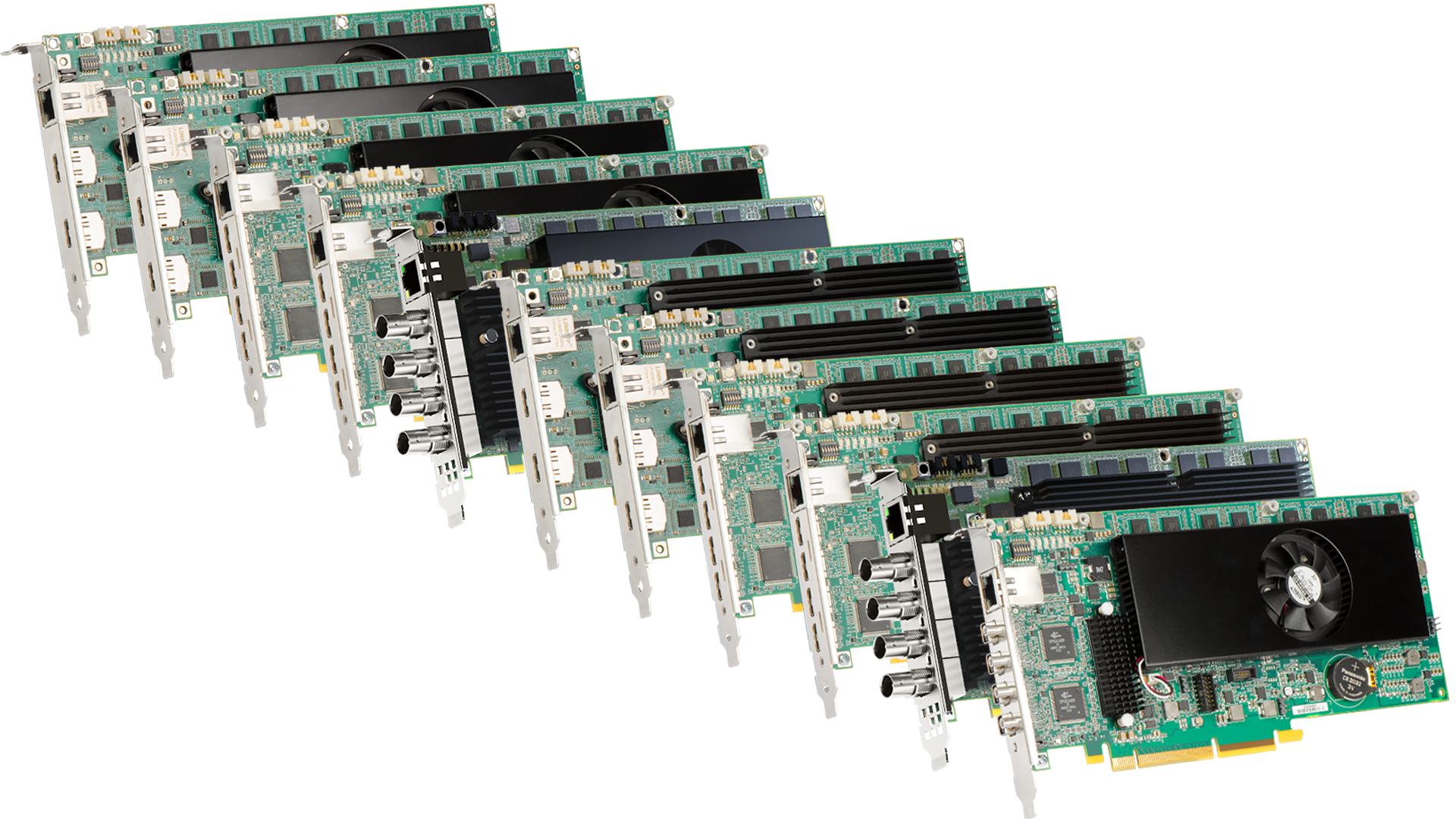

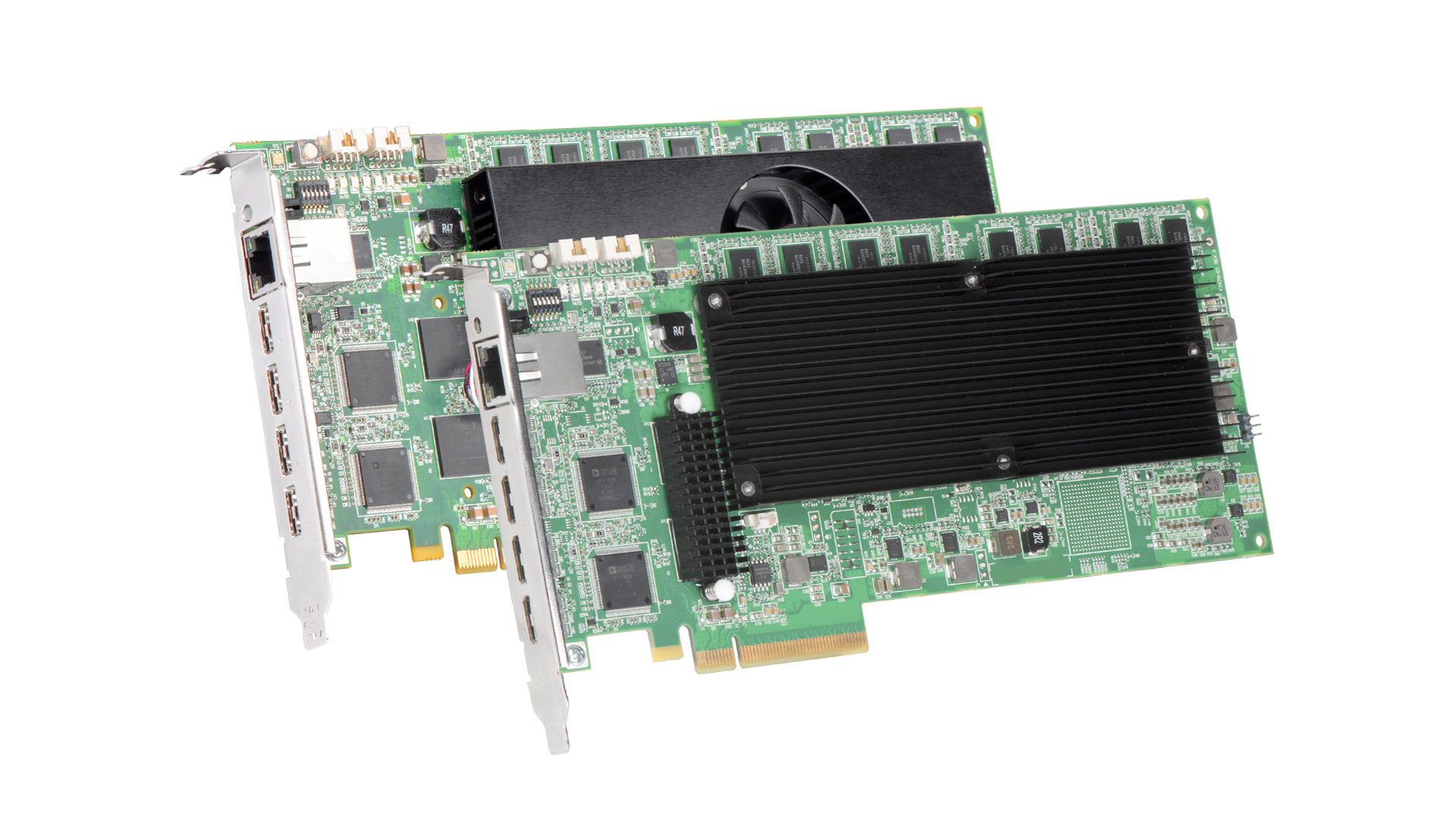

Dynamic system scalability
Through the integration of the low-footprint Mura IPX cards, video wall controllers, multiviewers, and personal video walls can be built to the scale required for specific projects. Optimized for performance, Mura IPX provides options to allow greater flexibility in integration while also offering enhanced thermal reliability.

Multi-source inputs for video capture

With four Mini HDMI or two DisplayPort inputs, Mura IPX can capture a wide variety of inputs, dependent on the number of sources and the display resolution required.
Direct memory access
Mura IPX series capture cards provide the ability to directly access system or graphics memory for a given application to obtain the raw data and perform a variety of processing operations —including analysis, warping, and rendering, among others.

Advanced video processing

Optimized to provide robust video processing functions, such as crop, rotation, flip, mirror, alpha blend, and color key, Mura IPX provides a canvas and comprehensive video toolset for smoother post-production effects. Through this functionality, inputs can be adjusted to suit the exact output needs of both in-person users and the remote audience.
Adjustable color depth & pixel transfer formats
Depending on the scenario, it may be advisable to subsample color to save bandwidth. Offering full 4:4:4 color to preserve full-color depth, Mura IPX also permits 4:2:2 and 4:2:0 subsampling to reduce bandwidth load where users will not be affected by the reduction in color detail.

Validated platforms

Matrox video wall products are supported in numerous non-validated, COTS motherboards and systems but a select few of these solutions have been thoroughly tested, verified, and validated by Matrox Video. Choosing a validated platform guarantees a high-quality solution to drive your display wall systems.
Matrox MuraControl Software and APIs

Easy-to-use video wall management software
Matrox MuraControl is a low-cost, premium performance, video wall management software that provides an easy and intuitive way to manage your Matrox-based video wall, multiviewer, or personal video wall locally or remotely. Available as a feature-rich, single-licence software for Microsoft® Windows®, MuraControl can be used to create and manage layouts offline or in real time.

Matrox Mura SDK and re-branding options
Matrox Video offers a complete range of software, APIs, and libraries that allow OEMs and developers to build personalized applications or interfaces based on project needs. White-label options allow for easy re-branding of Matrox software with enterprise naming, logos, colors, and identity for complete corporate integration.
Technical specifications
Product | |
Part Number |
MURAIPXI-D4JF (4x Mini HDMI, fan sink) MURAIPXI-D4JHF (4x Mini HDMI, fanless) MURAIPXI-D2MF (2x DisplayPort, fan sink) MURAIPXI-D2MHF (2x DisplayPort, fanless) |
Bus Interface |
PCIe x16 Gen 2 mechanical (x8 electrical) |
