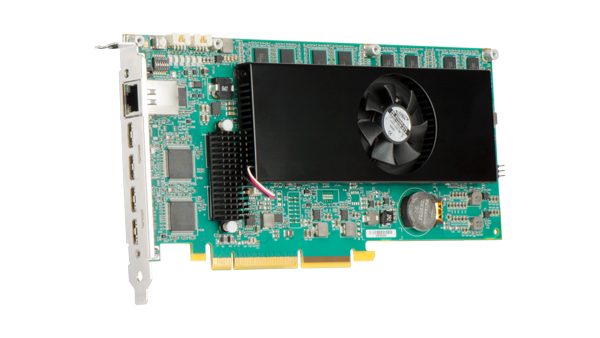

Maevex 6100 Quad 4K Encoder

Drive four 4K/UHD and Full HD capture, encode, stream, and record—simultaneously from a single PCIe^® card. A native network jack on the Maevex 6100 card eliminates reliance on the host computers’ network. PC independence means there’s no need for a driver and no system bus data transfer is required or executed—all processing is performed on the card itself. Streams and recordings are sent over the Maevex 6100’s independent network connector, and only power is taken from the host system’s PCIe bus. Maevex 6100 cards can be placed into available slots in existing systems without compromising system integrity and stability, and make minimal power consumption demands of the PC system.

Benefit from up to 4K/UHD 4:4:4 sub-sampling support for best-in-breed encoding. The multi-chroma sub-sampling feature delivers 4:4:4, 4:2:2, 4:2:0, and 4:0:0 options, to best balance bitrate and compression demands of different encoding content, environments, and markets. User-definable bitrates and quantization parameters, as well as various encoding modes to optimize for desktop, low-latency, or image quality.

Crestron Service Providers (CSP) can now seamlessly integrate Matrox Maevex 6100 Series devices into existing Crestron environments with our Creston Module for Maevex 6100 Series. The Crestron Module enables you to add additional feature sets under Crestron control, thanks to the included sample code. You can now expand your Crestron-controlled environment and easily create an integrated solution that meets all the needs of your clients.

REGISTER NOW TO INTEGRATE WITH CRESTRON
