Mura IPX 4K Capture & IP Encode/Decode Series

Mura IPX 4K Capture & IP Encode/Decode

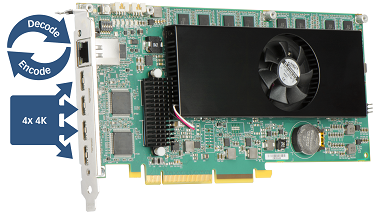

Matrox® Mura IPX 4K capture and IP encode/decode cards feature four HDMI®, four SDI, or two DisplayPort™ inputs for high-resolution capture, encoding, streaming, recording and decoding of up to four 4K or 16 HD streams—delivering an unmatched audiovisual experience.

These PCI Express® cards can stream and record an entire video wall or selected regions of interest, with pixel for pixel or scaled down representation of the display wall anywhere on the network. Mura IPX 4K capture and IP encode/decode can easily satisfy system builder requirements through the mixing and matching of a wide selection of Matrox video wall components. Ideal for control rooms, digital signage, AV presentation, security, and other applications that involve high-density capture, encoding, streaming, recording, decoding, and control operations.

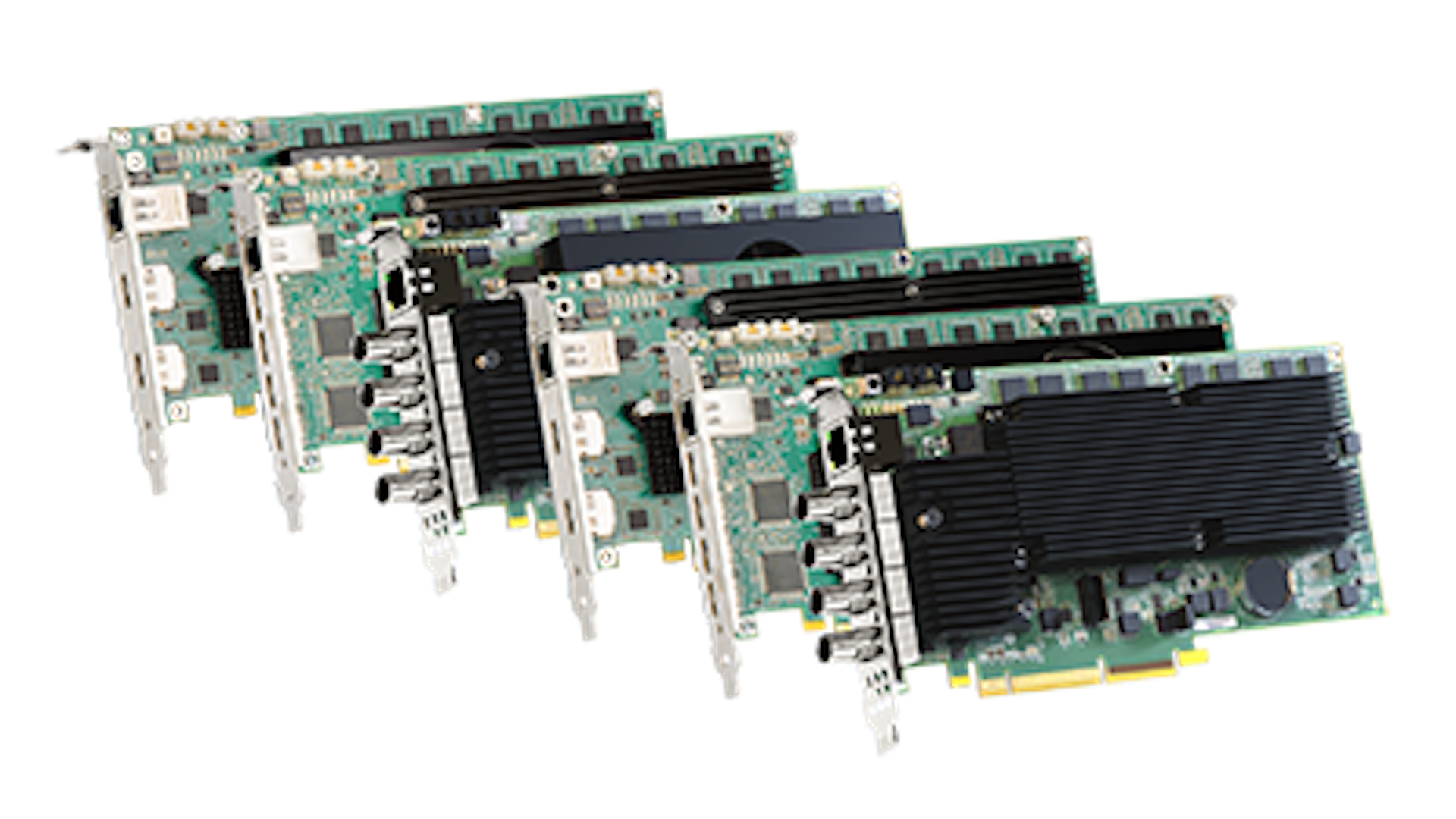

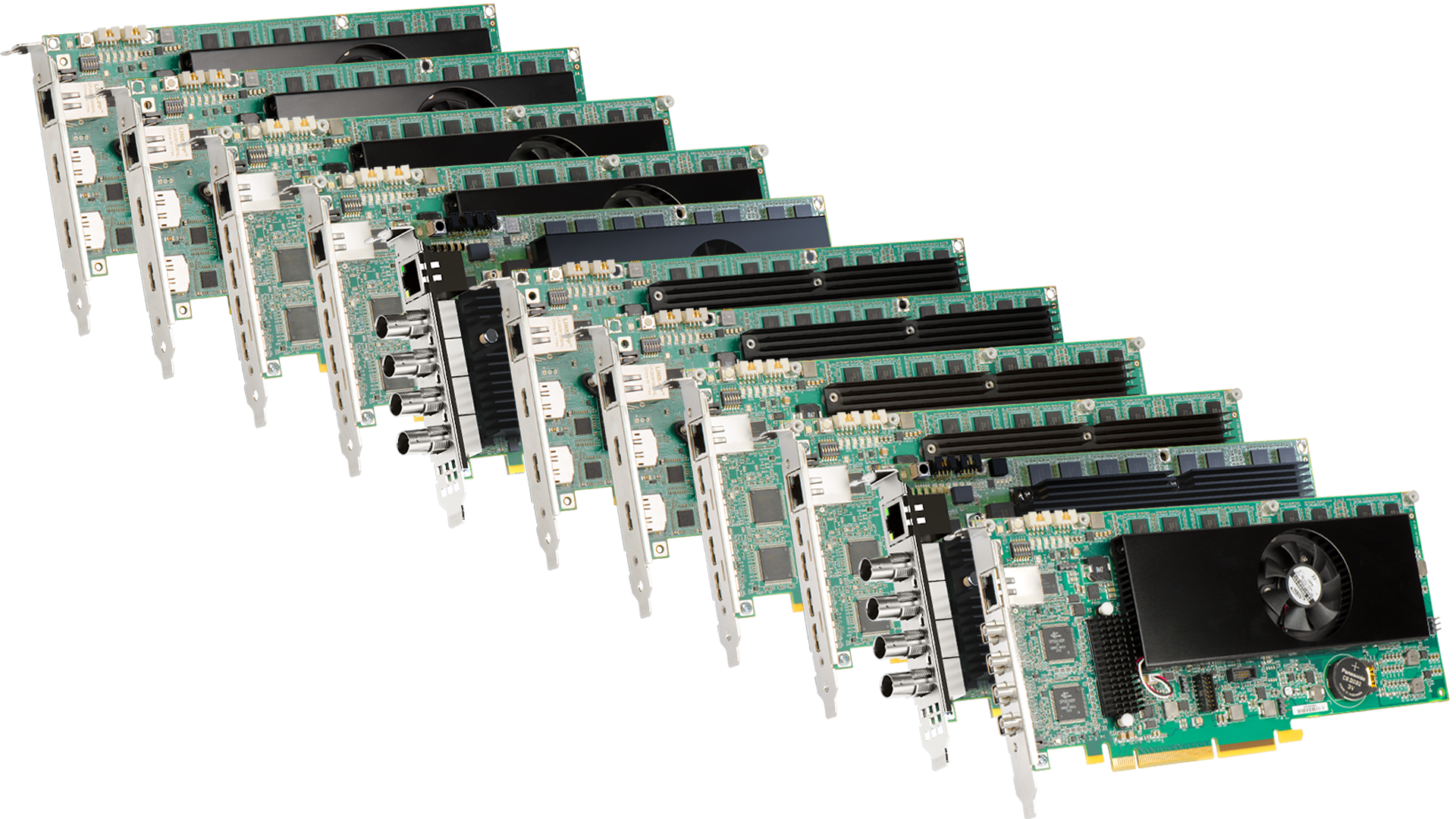

Lineup

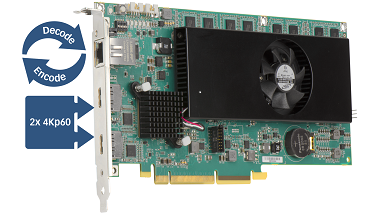

4K DisplayPort Capture & IP Encode/Decode
Part number: MURAIPXI-E2MF
Two Captures and IP Encode/Decode
(2x 4Kp60)

Mura IPX 4K DisplayPort Capture & IP Encode/Decode (Fanless)

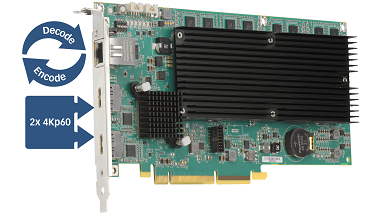

4K DisplayPort Capture & IP Encode/Decode (Fanless)
Part number: MURAIPXI-E2MHF
Two Captures and IP Encode/Decode
(2x 4Kp60)

Mura IPX 4K HDMI Capture & IP Encode/Decode Card

4K HDMI Capture & IP Encode/Decode
Part number: MURAIPXI-E4JF
Four Captures and IP Encode / Decode

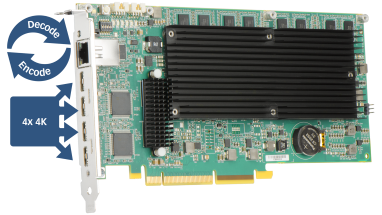

Mura IPX 4K HDMI Capture & IP Encode/Decode (Fanless)

4K HDMI Capture & IP Encode/Decode (Fanless)
Part number: MURAIPXI-E4JHF
Four Captures and IP Encode/Decode

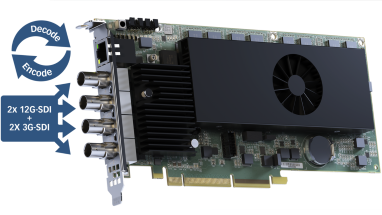

Mura IPX 4K 12G-SDI Capture & IP Encode/Decode Card

12G-SDI Capture & IP Encode/Decode
Part number: MURAIPXI-E4SF
Four Captures and IP Encode/Decode
(2 x 12G-SDI, 2x 3G-SDI)

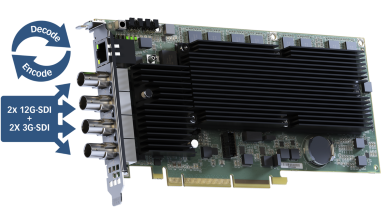

Mura IPX 4K 12G-SDI Capture and IP Encode Decode Card (Fanless)

12G-SDI Capture & IP Encode/Decode (Fanless)
Part number: MURAIPXI-E4SHF
Four Captures and IP Encode/Decode
(2 x 12G-SDI, 2x 3G-SDI)

High-density H.264 encoding and decoding

Mura IPX cards have been engineered to offer world-class, high-density H.264 encoding and decoding capabilities for use in virtually any application of encoding, decoding, or transcoding.

Resolution HDMI, 12G-SDI or DisplayPort 1.2 capture and IP encoding/decoding of 4K, Full HD, or SD streams.

Quality encoding through the support of desktop-grade, high-frequency content. Mura IPX allows for perfect desktop sharing and recording applications on content as detailed as only one pixel thick.

Number of streams encoding and decoding for numerous applications ranging from decoding a high number of streaming IP sources, to the capture and streaming of multiple independent streams of video content at multiple bitrates, resolutions, and quality levels.

HDCP compliant

Mura IPX cards capture up to 4 x 4K HDCP sources from a single-slot card. Mura IPX can also pair with Matrox D-Series graphics cards to capture and display HDCP-protected content on ultra-large video walls.

Proven video wall ecosystem

Combine Matrox Mura IPX’s exceptional multi-channel 4K capture, encode, and decode capabilities along with Matrox Video’s various multi-display options.

Pair Mura IPX with LUMA Pro graphic cards to output up to 8x 8k60 or 16x 5k60 displays.
Pair Mura IPX with D-Series graphics cards to output up to 16 x 4K displays
Pair Mura IPX with D-Series graphics cards and QuadHead2Go™ multi-monitor controllers to drive up to 64 Full HD screens.

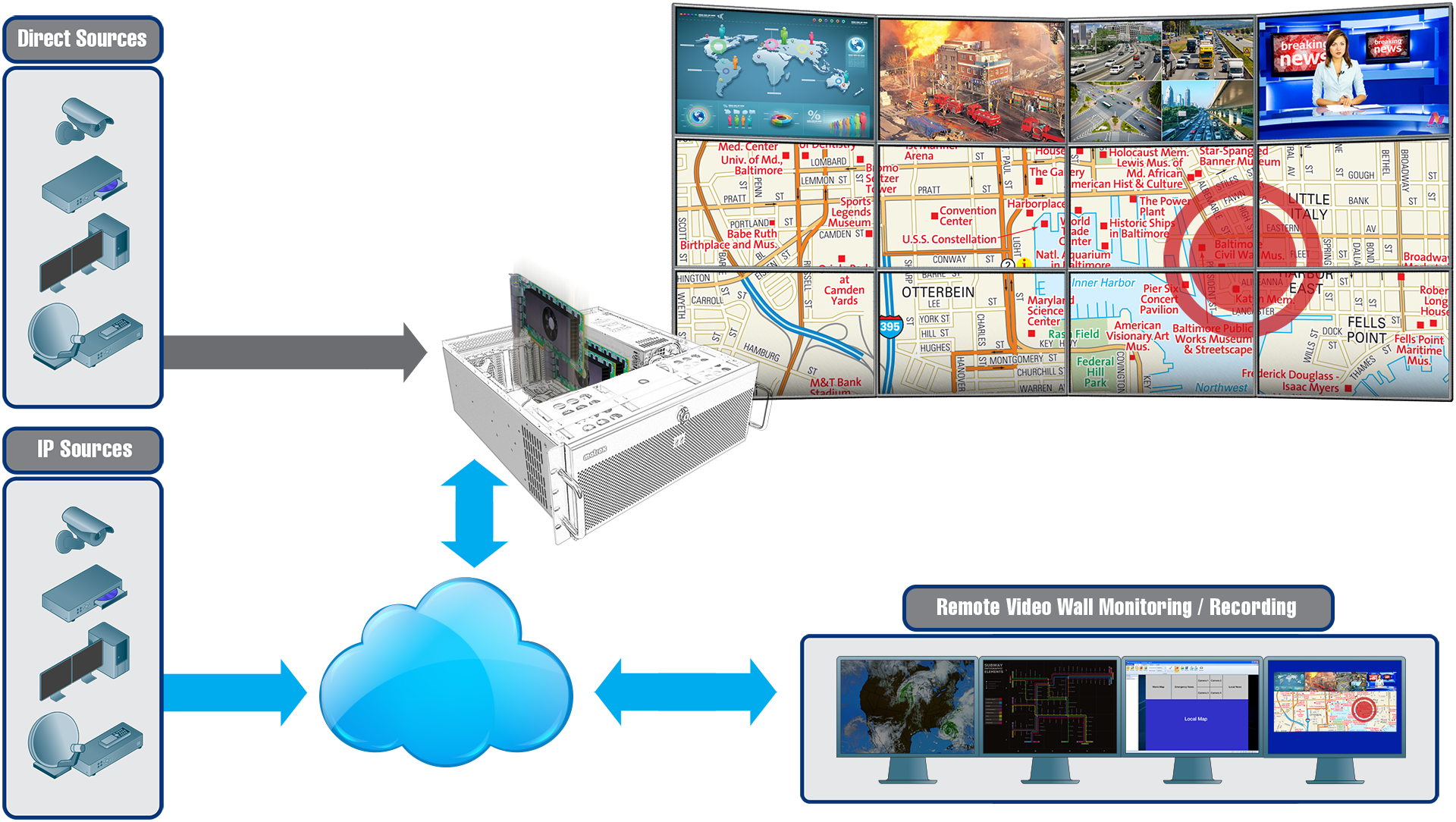

Remote video wall

Can stream and record an entire video wall or selected regions of interest, with pixel for pixel or scaled down representation of the display wall anywhere on the network.

Dynamic system scalability

Through the integration of the low-footprint Mura IPX cards, video wall controllers, multiviewers, and personal video walls can be built to the scale required for specific projects. Optimized for performance, Mura IPX provides options to allow greater flexibility in integration while also offering enhanced thermal reliability.

Multi-source inputs for video capture

With four Mini HDMI, four SDI, or two DisplayPort inputs, Mura IPX can capture a wide variety of inputs, dependent on the number of sources and the display resolution required.

Direct memory access

Mura IPX series capture cards provide the ability to directly access system or graphics memory for a given application to obtain the raw data and perform a variety of processing operations —including analysis, warping, and rendering, among others.

Advanced video processing

Optimized to provide robust video processing functions, such as crop, rotation, flip, mirror, alpha blend, and color key, Mura IPX provides a canvas and comprehensive video toolset for smoother post-production effects. Through this functionality, inputs can be adjusted to suit the exact output needs of both in-person users and the remote audience.

Adjustable color depth & pixel transfer formats

Depending on the scenario, it may be advisable to subsample color to save bandwidth. Offering full 4:4:4 color to preserve full-color depth, Mura IPX also permits 4:2:2 and 4:2:0 subsampling to reduce bandwidth load where users will not be affected by the reduction in color detail.

Matrox video wall products are supported in numerous non-validated, COTS motherboards and systems but a select few of these solutions have been thoroughly tested, verified, and validated by Matrox Video. Choosing a validated platform guarantees a high-quality solution to drive your display wall systems.

Easy-to-use video wall management software

Matrox MuraControl video wall management software provides an easy and intuitive way to manage your Matrox-based video wall, multiviewer, or personal video wall locally or remotely. Available as a feature-rich, single-license software for Microsoft® Windows®, MuraControl can be used to create and manage layouts offline or in real time.

LEARN MORE

Matrox Mura SDK and re-branding options

Matrox Video offers a complete range of software, APIs, and libraries that allow OEMs and developers to build personalized applications or interfaces based on project needs. White-label options allow for easy re-branding of Matrox software with enterprise naming, logos, colors, and identity for complete corporate integration.
