Maevex 6100 Encoder
Quad 4K video encoder card

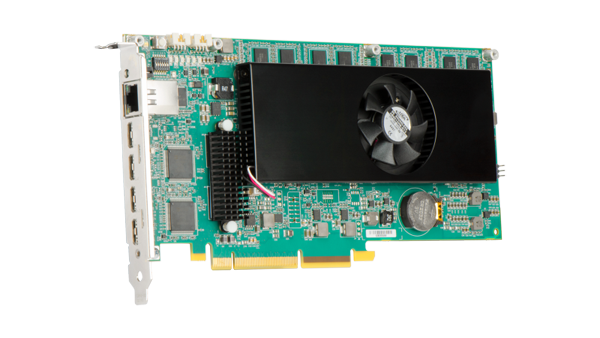

The Maevex 6100 quad 4K video encoder card delivers simultaneous capture, encode, stream, and record—in a PC friendly PCI Express® form factor. Built for efficiency, it provides high compression performance without compromising on image quality making it ideal for demanding mission critical environments. The card pulls power only from the PCI Express slot and has its own Ethernet port, allowing it to be almost invisible to any PC and operating system. Use the Maevex 6100 card in existing spare slots for dense encoding.
Maximum performance with minimal footprint

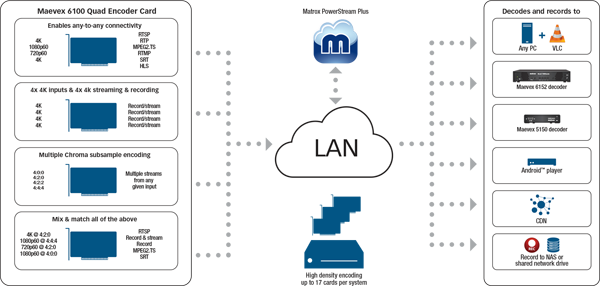

Drive four 4K/UHD and Full HD capture, encode, stream, and record—simultaneously from a single PCIe® card. A native network jack on the Maevex 6100 card eliminates reliance on the host computers’ network. PC independence means there’s no need for a driver and all processing is performed on the card itself. Streams and recordings are sent over the Maevex 6100’s independent network connector, and only power is taken from the host system’s PCIe bus.
Multiple protocols for flexible streaming
Enjoy a variety of streaming protocols such as, RTSP, MPEG2-TS, RTP, SRT, HLS and RTMP for trouble-free streaming in any environment. With SRT, it achieves ultra-low latency and high-performance streaming even over noisy or unpredictable networks like the public Internet. Whether you’re dealing with a stable LAN connection, a constrained WAN pipeline, an unpredictable open Internet transport, VPN, or cloud, Maevex 6100 always has the right streaming protocol to keep your streams running smoothly.
Enterprise-grade security
Designed for demanding environments, Maevex 6100 ensures enterprise-grade security for both content and control. Integration with Microsoft Active Directory® provides strong access control, while HTTPS communication secures device management. With support for the SRT protocol and AES encryption, every stream is delivered securely and reliably.
Built for mission-critical control rooms
Ideal for security and surveillance centers, medical environments, military operations, and more, Maevex 6100 encoder card delivers reliable high-density performance with proven reliability for mission-critical applications. It integrates seamlessly with third party VMS platforms from providers such as Genetec and Milestone enabling real-time visualization and control across security and surveillance centers worldwide.
Flawless image quality
Benefit from up to 4K/UHD 4:4:4 sub-sampling support for best-in-breed encoding. The multi-chroma sub-sampling feature delivers 4:4:4, 4:2:2, 4:2:0, and 4:0:0 options, to best balance bitrate and high compression demands of different encoding content, environments, and markets. User-definable bitrates and quantization parameters, as well as various encoding modes to optimize for desktop, ultra-low-latency, or image quality.
Technical Specifications
| Product | |
| Part Number | MVX-E6100X16-4 |
| Bus Interface | PCIe x16 mechanical (PCIe x8 electrical) |
| Form Factor | Card: Bracket: |
Software and Developer Tools
Easy to use with comprehensive tools for integration and device management:

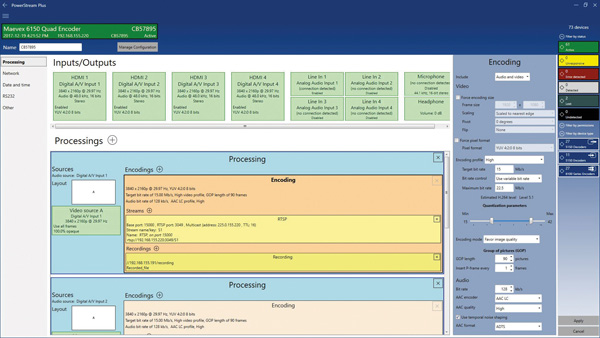

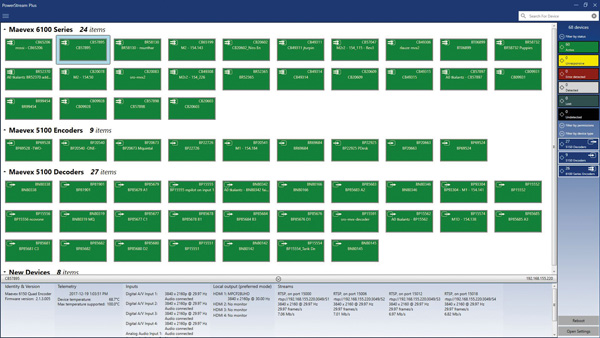

- Discover devices, manage content and monitor all streams with Matrox PowerStream Plus
- Adjust settings, set encoding parameters and monitor your device with the Command Center
- Perform software upgrades to a single device or perform system-wide deployments to multiple devices with the Maevex Firmware updated tool
- Customize workflows or build bespoke solutions using Maevex Developer Tools such as Maevex SDK, REST APIs, and RS-232 APIs
