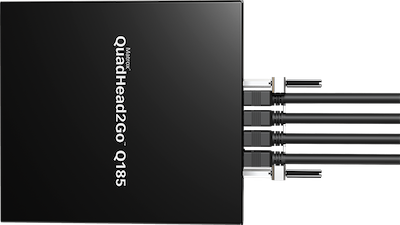

QuadHead2Go Q185 Multi-Monitor Controller Appliance

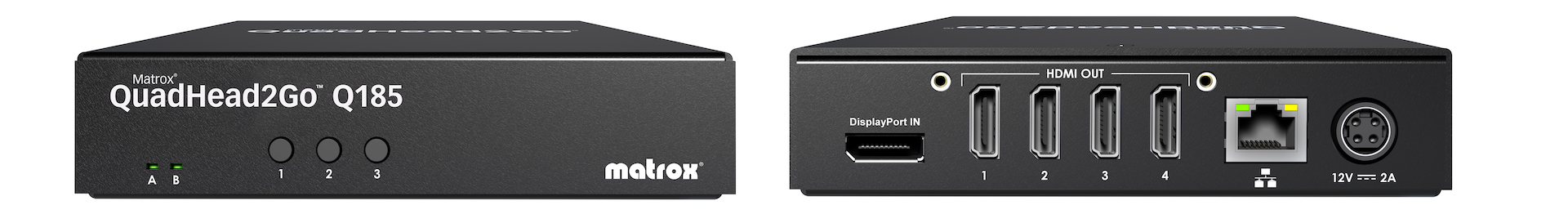

Q185 Appliance Front Back Angle Left with TAA Compliance

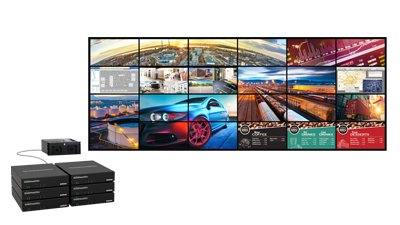

Scalable. Flexible. Easy-to-deploy video walls.

Drive four displays from one signal. System-independent, the Matrox® QuadHead2Go™ Series multi-monitor controller is designed to power any video wall configuration of any possible dimension, from any video source—reliably delivering flawless image quality across expansive video wall displays. On-device buttons and pre-set configurations ensure an out-of-the-box, trouble-free installation experience. TAA compliant SKU available.

Engineered for flexibility

HDCP Pad Icon

HDCP compliant

Synchronized Video Outputs Icon

Synchronized video outputs

Easy Drag Drop Pad Icon

Crop, scale and/or rotate at 90°, 180°, or 270°

Quad Monitor Icon

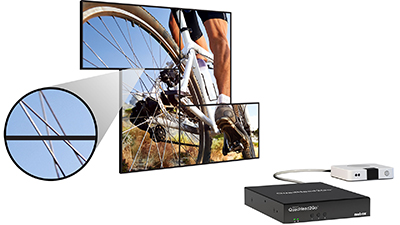

Bezel Management

Controlled Via IP Icon

Control via IP with software or APIs

On-Device Buttons Appliance Icon

On-device buttons for easy configuration

Rack Mountable Icon

Rack ready and mountable

Independant Outputs Icon

Independent outputs

Ready to deploy. Right out of the box.

  • Set up without installing software or even connecting a video source, by using the default configuration of 2x2 in landscape.
  • Reduce setup time by using QuadHead2Go’s pre-set configurations and built-in images.
  • Eliminate physical handling by controlling and updating the cards remotely from anywhere on the network (LAN).

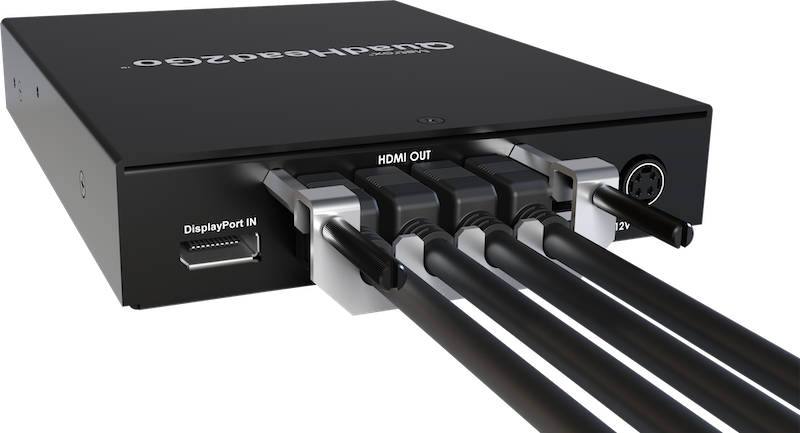

  • Ensure compatibility with professional-grade graphics cards with Mini DisplayPort™ 1.2 support—no adapter required.
  • Create a video wall from any content source—professional graphics cards and integrated GPUs, video wall controllers, digital signage players, media players, decoders, laptops, NUCs, set-top boxes, gaming consoles, and more.
The Matrox advantage checkmark

Build your wall with the touch of a button

Matrox QuadHead2Go on-device buttons icon

On-device buttons make it easy to select and set the display layout—simply cycle through pre-set configurations. Set up display positions, fine tune bezels, and also troubleshoot with ease, by accessing the built-in or pre-saved images directly from the appliance, together with display identification information that includes the ID number and the resolution of each output.

Compact design fits anywhere

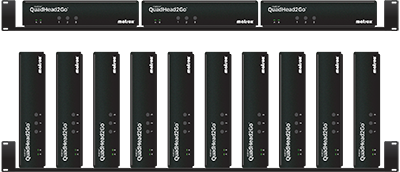

Fit three QuadHead2Go appliances horizontally or ten appliances vertically—in a standard 19-inch rack. Simply place the appliance on the desktop, workstation, or rack, and it’s ready to use. Need to mount your QuadHead2Go appliance to your monitor instead? Conveniently mount it to your display with the available VESA bracket.

Learn more about mounting your QuadHead2Go appliance

Scale your video wall. Easily and infinitely.

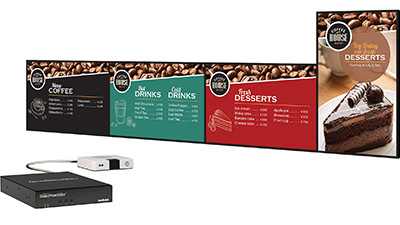

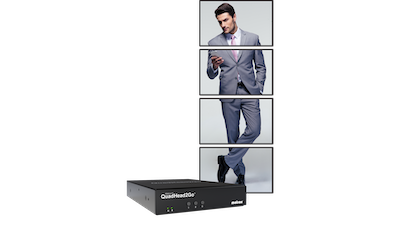

Rotate and position outputs independently from one another

Design modern and artistic video wall layouts with free rein—each output can have its own resolution, be independently rotated (90, 180, and 270 degrees), cropped, upscaled, downscaled, and positioned anywhere.

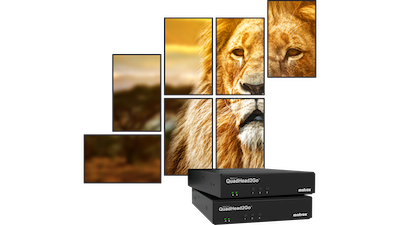

QuadHead2Go rotated outputs
QuadHead2Go 64-output video wall

Create or expand large-scale video wall solutions

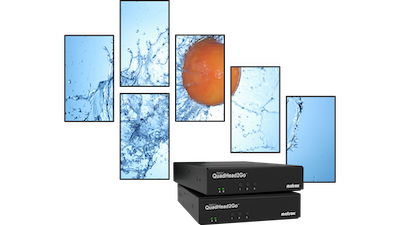

Expand to a video wall configuration of any size by using multiple QuadHead2Go appliances. Fashion countless forms of setups—arrange displays in 4x1, 1x4, 2x2, 3x1, 1x3, 2x1, or 1x2 rectangular configurations, in portrait or landscape, or other non-rectangular/artistic configurations—and combine/scale them to create large-scale video walls.

Proven video wall ecosystem

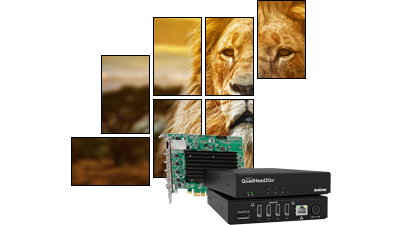

Drive up to 64 1920x1080p60 displays and create captivating video walls by pairing QuadHead2Go multi-monitor controllers with Matrox LUMA or Matrox D-Series graphics cards.

Drive 64-output video walls with QuadHead2Go and D-Series

HDCP compliant

Capture and display HDCP-protected content with QuadHead2Go multi-monitor controllers.

HDCP logo Icon

Complete your setup

Matrox accessories to help you complete your setup

From cables and adapters to shelves and brackets, Matrox provides a range of hardware accessories that make connecting, installing, and securing your Matrox product quick and easy.

View accessories

Always powered. Always on.

Safeguard against a potential loss of power. Matrox makes available rack-mounted, multi-output redundant power supply units (RPSU) to ensure uninterrupted operation of your Matrox device in case of a power module failure and a redundant power input in case a circuit breaker trips.

View Matrox redundant power supply units

Rack-mounted, multi-output redundant power supply unit for QuadHead2Go

Software

Designed to simplify large video wall installations

PowerWall Software Icon



Install and use PowerWall software in offline mode to customize configurations of any type and size, and control the outputs independently—even before establishing an active connection to QuadHead2Go. Set the display layout by simply selecting any of the pre-set configurations from the PowerWall interface.

LEARN MORE ABOUT POWERWALL SOFTWARE

API

Build custom applications

For OEMs and system integrators seeking to customize applications ranging from single-function operation to thorough integration, the complimentary Matrox QuadHead2Go REST API is available upon request. Further customize the appearance of your Matrox product—with new company naming, images, logos, colors, buttons, and identity—for greater ease of use and complete white label branding of Matrox hardware and software.

REQUEST MORE INFORMATION

QuadHead2Go Developer Tools

Technical specifications

Product
Part Number

Q2G-DP4K

Form Factor

Standalone appliance



View All Tech Specs
